Gross prices without shipping costs or minimal invoicing following your retailer
Currencies: GBP
|
Position |
Description (Qty) |
Part number |
Price (£) |
|
|

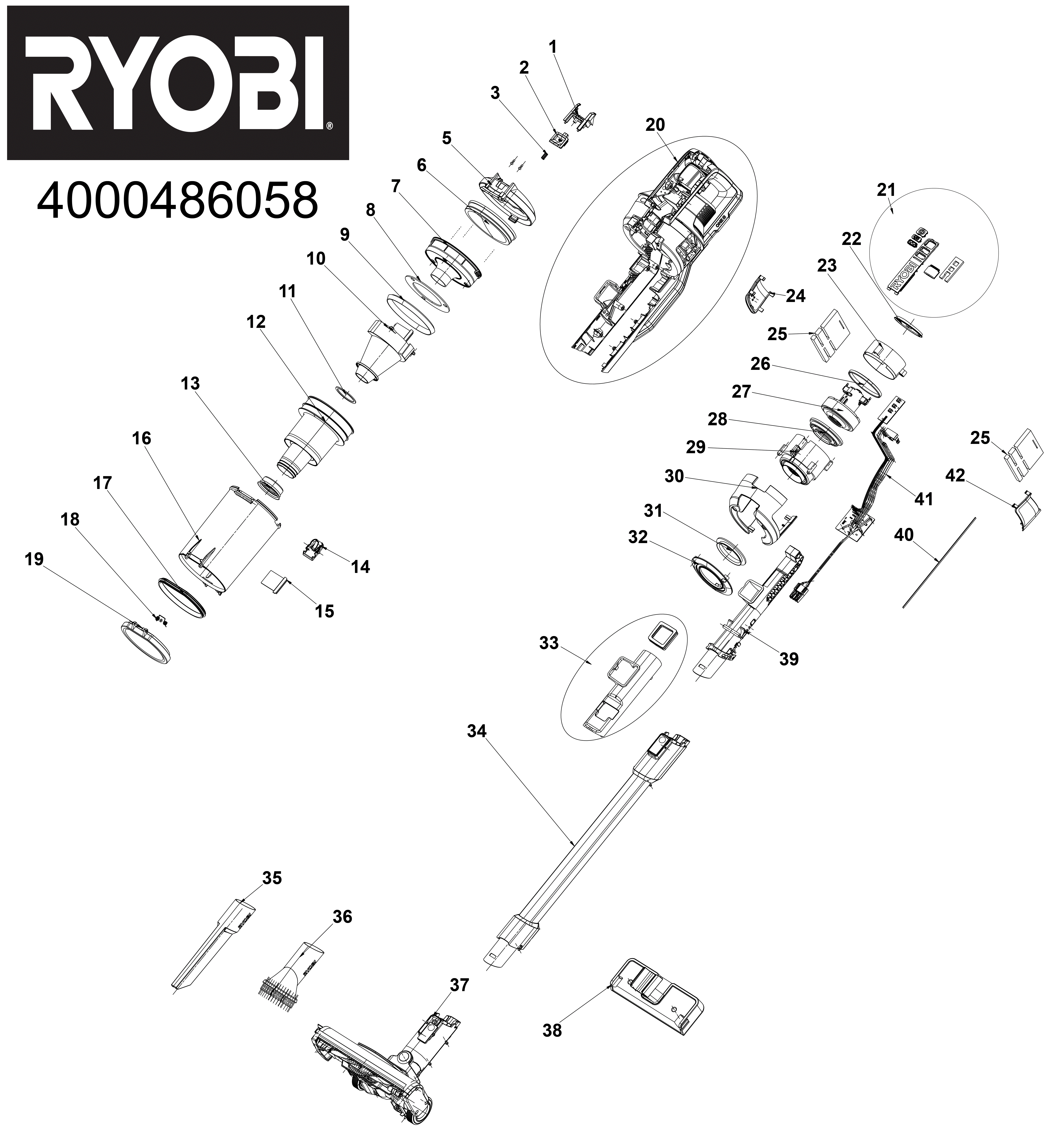

1001 |
COVER (1)
|
5131046146 |
2.09
|
|
|
1002 |
BUTTON (1)
|
5131046147 |
2.09
|
|
|
1003 |
SPRING (1)
|
5131043403 |
2.09
|
|
|
1005 |
COVER (1)
|
5131046148 |
2.92
|
|
|
1007 |
COVER (1)
|
5131046149 |
2.50
|
|
|
1008 |
SEALING WASHER (1)
|
5131046111 |
2.09
|
|
|
1009 |
SEAL (1)
|
5131046150 |
2.09
|
|
|
1010 |
ACCEPTANCE (1)
|
5131046113 |
2.50
|
|
|
1011 |
SEALING WASHER (1)
|
5131046114 |
2.09
|
|
|
1012 |
FILTER (1)
|
5131046151 |
6.26
|
|
|
1013 |
SEALING WASHER (1)
|
5131046152 |
2.09
|
|
|
1014 |
TRIGGER (1)
|
5131046153 |
2.09
|
|
|
1015 |
DUST INDICATOR (1)
|
5131046154 |
2.50
|
|
|
1016 |
CUP (1)
|
5131046155 |
12.52
|
|
|
1017 |
SEALING WASHER (1)
|
5131046156 |
2.09
|
|
|
1018 |
SPRING (1)
|
5131046121 |
2.09
|
|
|
1019 |
COVER (1)
|
5131046157 |
2.92
|
|
|
1020 |
HOUSING (1)
|
5131046158 |
24.20
|
|
|
1021 |
PUSH BUTTON (1)
|
5131046159 |
8.62
|
|
|
1022 |
COVER CAP (1)
|
5131046160 |
2.50
|
|
|
1023 |
COVER (1)
|
5131046161 |
2.50
|
|
|
1024 |
COVER (1)
|
5131046162 |
2.09
|
|
|
1025 |
FOAM SLUG (2)
|
5131046130 |
2.09
|
|
|
1026 |
RUBBER BUFFER (1)
|
5131046163 |
2.50
|
|
|
1027 |
DC-MOTOR (1)
|
5131046164 |
18.78
|
|
|
1028 |
FRONT PLATE (1)
|
5131046165 |
2.50
|
|
|
1029 |
MOTOR SUPPORT (1)
|
5131046166 |
2.92
|
|
|
1030 |
HOUSING (1)
|
5131046167 |
2.92
|
|
|
1031 |
SEAL (1)
|
5131046168 |
2.09
|
|
|
1032 |
END COVER CAP (1)
|
5131046169 |
2.50
|
|
|
1033 |
GUIDE TUBE (1)
|
5131046170 |
5.43
|
|
|
1034 |
SUCTION TUBE (1)
|
5131046171 |
27.58
|
|
|
1035 |
GAP NOZZLE (1)
|
5131046139 |
2.59
|
|
|
1036 |
SUCTION NOZZLE (1)
|
5131046140 |
5.17
|
|
|
1037 |
BEATER BAR HEAD ASSY (1)
|
5131046172 |
76.79
|
|
|
1038 |
WALL HOLDER (1)
|
5131046141 |
2.92
|
|
|
1039 |
SUCTION TUBE (1)
|
5131046173 |
5.43
|
|
|
1040 |
RUBBER BUMPER (1)
|
5131046143 |
2.09
|
|
|
1041 |
ELECTRONIC (1)
|
5131046174 |
42.98
|
|
|
1042 |
COVER (1)
|
5131046175 |
2.09
|
|
|
1006 |
RAVACHF Stick Vacuum Filter XXX (1)
|
5132005767 |
8.07
|
|
